ProductsLocation£ºhome > Products > Manual hoist > Trolley > Plain Trolley VP Model
Product Name£ºPlain Trolley VP Model
Plain Trolley VP Model
Previous£ºGeared Trolley GT model¡¡¡¡Next£ºNo products
Details£º

Capacity (T) I-Beam
width(m)		 N.W.
(KGS)		 Rated
Load(KN)		 Dimensions(MM)

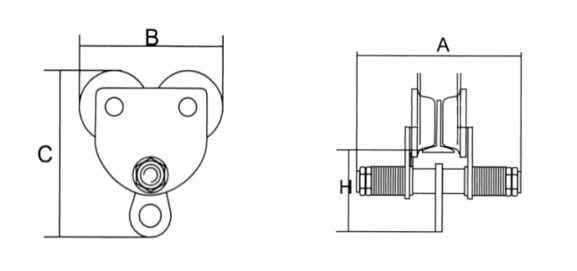

A B C H
0.5T 68-94 4.2 6.25 189 165 172 108
1T 68-100 6.2 12.5 208 185 208 134
2T 94-124 11.5 25 250 226 253 162
3T 116-140 20.5 37.5 288 278 305 191
5T 140-180 34.5 62.5 355 325 369 233
