◆Rugged construction.
◆Accuracy: 0.05% of capacity.
◆All fuctions and units are clearly display on the LCD (with backlighting).
◆Digits are 1 inch high for easy distant viewing.
◆Two user programmable Set-Point can be used for safety and warning applications or for limit weighing.
◆Long battery life on 3 standard “LR6(AA)”size alkaline batteries.
◆All commonly used internationally recognized units are available : kilograms(kg), short Tons(t) pounds(lb), Newton and kilonewton(kN).
◆Infrared Remote control easier to calibration(with password).
◆Infrared Remote control with many fuctions : “ZERO”, ”TARE”,”CLEAR”, “PEAK”, ”ACCUMULATE” ,”HOLD” ,”Unit Change” ,”Voltage Check” and “Power OFF”.
◆4 local mechanical keys :”ON/OFF”,”ZERO”,”PEAK” and ”Unit Change”.u
◆low battery warning .

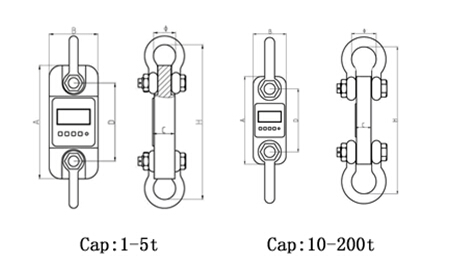

MODEL	A(mm)	B(mm)	C(mm)	D(mm)	φ(mm)	H(mm)	Material
DL-R-01	245	112	37	190	43	335	Aluminum
DL-R-02	245	112	37	190	43	335	Aluminum
DL-R-03	260	123	37	195	51	365	Aluminum
DL-R-05	285	123	57	210	58	405	Aluminum
DL-R-10	320	120	57	230	92	535	Alloy Steel
DL-R-20	420	128	74	260	127	660	Alloy Steel
DL-R-30	420	138	82	280	146	740	Alloy Steel
DL-R-50	465	150	104	305	184	930	Alloy Steel
DL-R-100	570	190	132	366	229	1230	Alloy Steel
DL-R-200	725	265	183	440	280	1380	Alloy Steel

　

MODEL	Max. capacity(kg)	Min. weigh(kg)	Division(kg)	Total dispay counts (n)
DL-R-01	1000	10	0.5	2000
DL-R-02	2000	20	1	2000
DL-R-03	3000	20	1	3000
DL-R-05	5000	40	2	3000
DL-R-10	10000	100	5	2000
DL-R-20	20000	200	10	2000
DL-R-30	30000	200	10	3000
DL-R-50	50000	400	20	2500
DL-R-100	100000	1000	50	2000
DL-R-200	200000	2000	100	2000
