Features
¡ôSpecial design:
Used under high temperature environment. Especially in casting industry.
¡ôMulti-function£º
Gross/Net, zero, date/time display, data memory and print, statistic, search, overload warning, lifter, low battery warning and power-saving function.
¡ôUser-friendly design£º
LCD with backlight, easy to operate with micro-printer.Steel housing scale body, high-tension hook and shackle, Ni-H battery to protect environment.
Minimum safety distance from high temperature
| 1000¡æ |
1200¡æ |
1400¡æ |
1600¡æ |
| 1.6m |
1.8m |
2m |
2.2m |

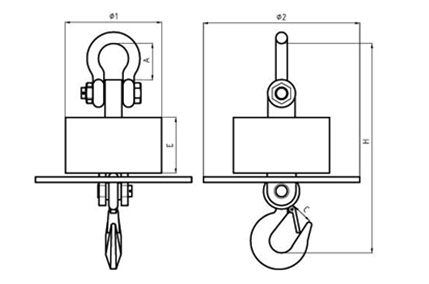

| MODEL |
A(mm) |
C(mm) |
¦µ1(mm) |
E(mm) |
¦µ2(mm) |
H(mm) |
N.W.(kg) |
| OCS-SWH2-1 |
67 |
35 |
270 |
160 |
400 |
450 |
31 |
| OCS-SWH2-2 |
95 |
45 |
270 |
160 |
400 |
510 |
34 |
| OCS-SWH2-3 |
113 |
55 |
325 |
185 |
520 |
625 |
46 |
| OCS-SWH2-5 |
122 |
65 |
325 |
185 |
520 |
710 |
55 |
| OCS-SWH2-10 |
144 |
70 |
325 |
185 |
520 |
835 |
78 |
| OCS-SWH2-15 |
166 |
85 |
325 |
185 |
520 |
900 |
91 |
| OCS-SWH2-20 |
295 |
135 |
375 |
220 |
620 |
1140 |
182 |
¡¡
| MODEL |
Max. capacity(kg) |
Min. weigh(kg) |
Division(kg) |
Total dispay counts (n) |
| OCS-SWH2-1 |
1000 |
10 |
0.5 |
2000 |
| OCS-SWH2-2 |
2000 |
20 |
1 |
2000 |
| OCS-SWH2-3 |
3000 |
20 |
1 |
3000 |
| OCS-SWH2-5 |
5000 |
40 |
2 |
2500 |
| OCS-SWH2-10 |
10000 |
100 |
5 |
2000 |
| OCS-SWH2-15 |
15000 |
100 |
5 |
3000 |
| OCS-SWH2-20 |
20000 |
200 |
10 |
2000 |
